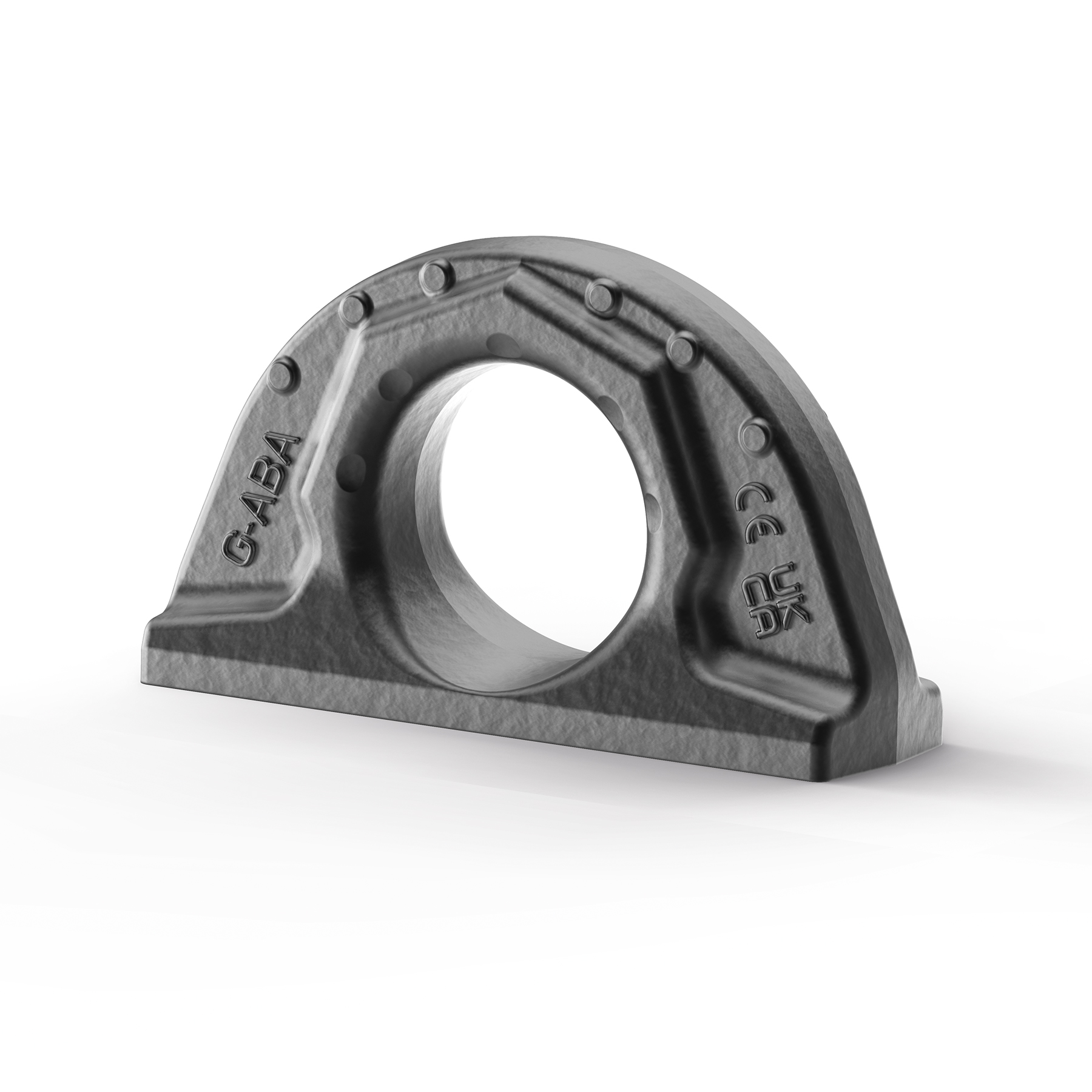

G-ABA - Weld-on Lifting Point for Galvanising
Optimised for hot dip galvanising
- Full WLL in any direction with 4:1 design factor
- Manufactured in Germany
- Optimised for hot dip galvanising
- Clear marking of the WLL for all loading directions
- Patented wear markings on the inside and outside
- Closed and circumferential fillet weld
- Temperature Range -40ºC to 200ºC no reduction in WLL
Product Variants (3)
G-ABA 1t - Lifting Point for Welding (7913870)

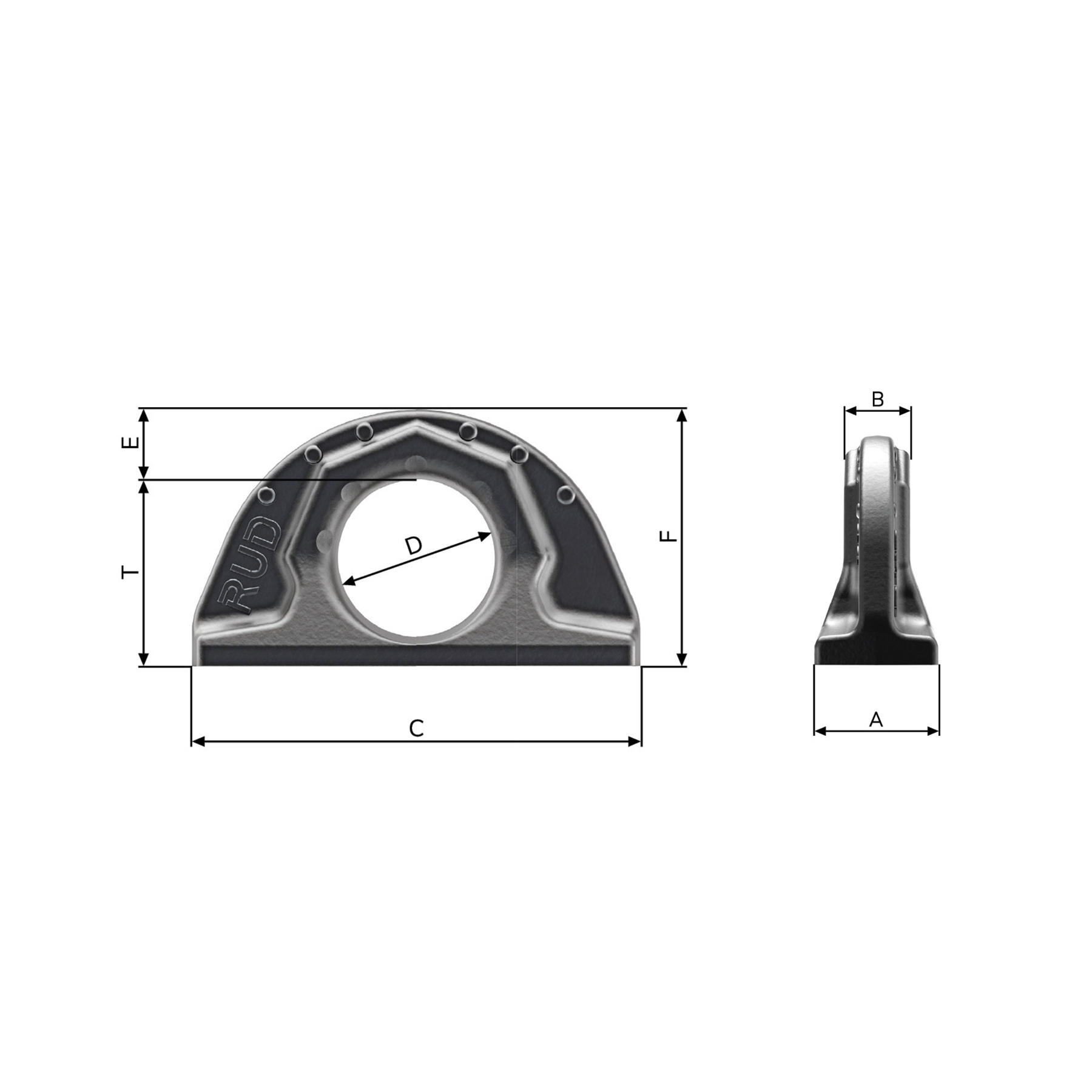

| Attribute | Value | Value |
|---|
| Weight | 0.55kg | 1.21lbs |
| Nominal WLL | 1000 kg | 2204 lbs |
| T | 42 mm | 1-21/32" |
| A | 32 mm | 1-17/64" |
| B | 18 mm | 45/64" |
| C | 104 mm | 4-3/32 |
| D | 35 mm | 1-3/8" |
| E | 18 mm | 45/64" |
| F | 59 mm | 2-21/64" |
G-ABA 2.5t - Lifting Point for Welding (7913871)
| Attribute | Value | Value |
|---|
| Weight | 1360 kg | 3000 lbs |
| Nominal WLL | 2500 kg | 5510 lbs |
| T | 59 mm | 2-21/64" |
| A | 41 mm | 1-39/64" |
| B | 29 mm | 1-9/64" |
| C | 137 mm | 5-25/64" |
| D | 50 mm | 1-31/32" |
| E | 21 mm | 53/64" |
| F | 80 mm | 3-5/32" |
G-ABA 4t - Lifting Point for Welding (7913872)
| Attribute | Value | Value |
|---|
| Weight | 2930 kg | 6460 lbs |
| Nominal WLL | 4000 kg | 8820 lbs |
| T | 72 mm | 2-53/64" |
| A | 59 mm | 2-21/64" |
| B | 35 mm | 1-3/8" |
| C | 176 mm | 6-59/64" |
| D | 60 mm | 2-23/64" |
| E | 27.5 mm | 1-5/64" |
| F | 99 mm | 3-57/64" |
