PP-VIP PowerPoint® - Direct VIP Chain Connection - BSW Thread
- Rotates 360° and pivots 230°
- Universal VIP connection for chain, hook and eye
- Double ball bearing for turning/rotating operations
- RUD 4:1 safety factor
Product Variants (5)
PowerPoint PP-VIP4-0.63t-1/2"-12BSW (8600571)

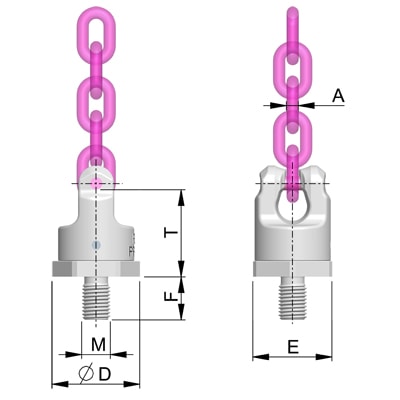

Attribute | Value | Value |
---|
weight | 0.24 kg | 0.53 lbs |
Nominal WLL | 630 kg | 1385 lbs |
A | 4 mm | 5/32" |
T | 41 mm | 1-5/8"
|
D | 40 mm | 1-9/16" |
E | 36 mm | 1-27/64" |
F | 18 mm | 23/32" |
M | 1/2"-12BSW mm | 1/2"-12BSW |
PowerPoint PP-VIP16-8t-1 1/2"-6BSW (8600305)
Attribute | Value | Value |
---|
weight | 4.74 kg | 10.45 lbs |
Nominal WLL | 8000 kg | 17600 lbs |
A | 16 mm | 5/8" |
T | 102 mm | 4"
|
D | 100 mm | 3-15/16" |
E | 90 mm | 3-17/32" |
F | 54 mm | 2-1/8" |
M | 1 1/2"-6BSW mm | 1 1/2"-6BSW |
PowerPoint PP-VIP10-4t-1"-8BSW (8600574)
Attribute | Value | Value |
---|
weight | 1.83 kg | 4.03 lbs |
Nominal WLL | 4000 kg | 8800 lbs |
A | 10 mm | 3/8" |
T | 77 mm | 3"-1/32"
|
D | 78 mm | 3-1/16" |
E | 70 mm | 2-3/4" |
F | 36 mm | 1-27/64" |
M | 1"-8BSW mm | 1"-8BSW |
PowerPoint PP-VIP8-2.5t-3/4"-10BSW (8600573)
Attribute | Value | Value |
---|
weight | 0.93 kg | 2.05 lbs |
Nominal WLL | 2500 kg | 5500 lbs |
A | 8 mm | 5/16" |
T | 61 mm | 2-13/32"
|
D | 61 mm | 2-13/32" |
E | 55 mm | 2-5/32" |
F | 30 mm | 1-3/16" |
M | 3/4"-10BSW mm | 3/4"-10BSW |
PowerPoint PP-VIP16-8t-1 1/2"-8BSF (8600305)
Attribute | Value | Value |
---|
weight | 4.74 kg | 10.45 lbs
|
Nominal WLL | 8000 kg | 17600 lbs
|
T | 102 mm | 4" |
A | 16 mm | 5/8" |
D | 100 mm | 3-15/16" |
E | 90 mm | 3-17/32" |
F | 54 mm | 2-1/8" |
M | 1 1/2"-8BSF mm | 1 1/2"-8BSF |
