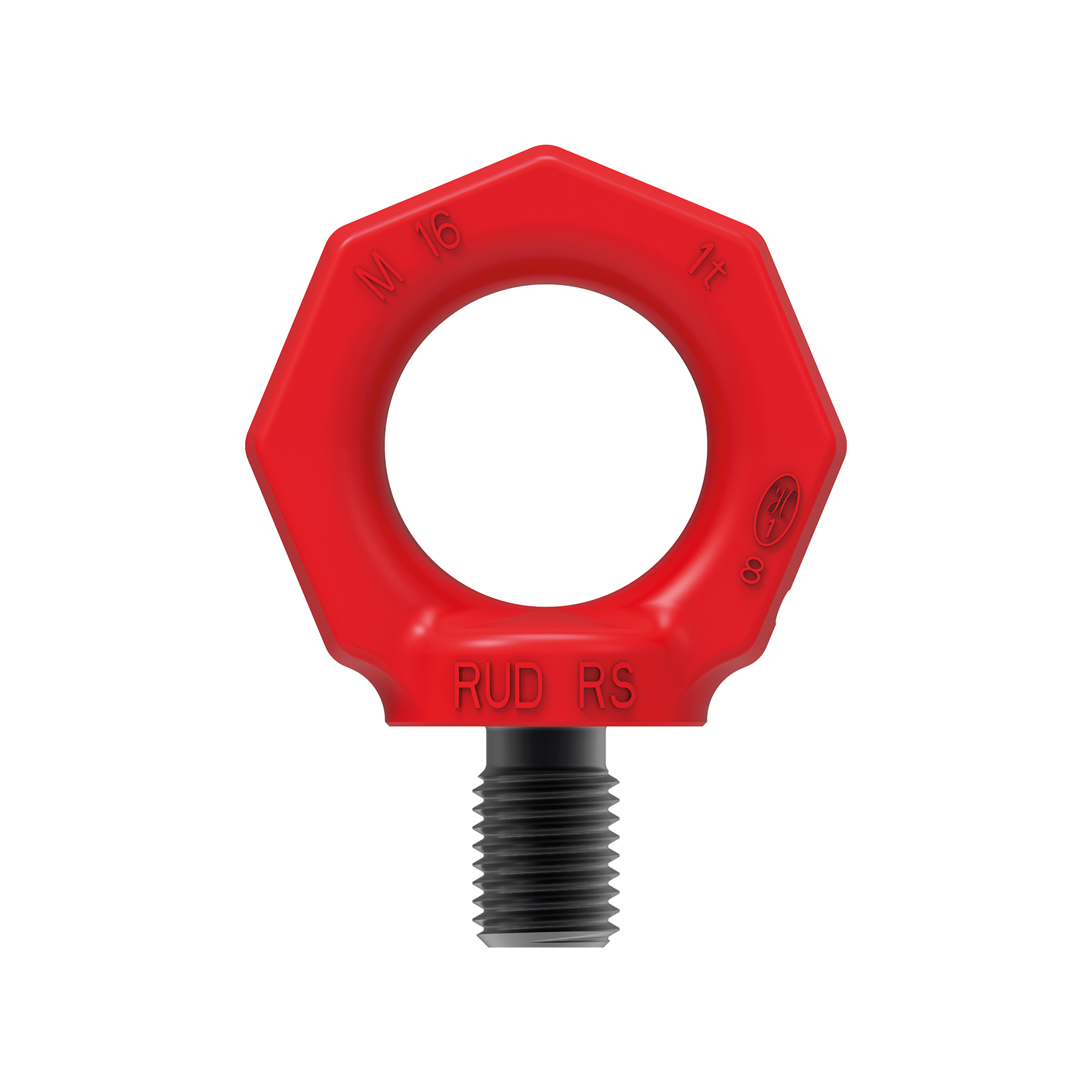

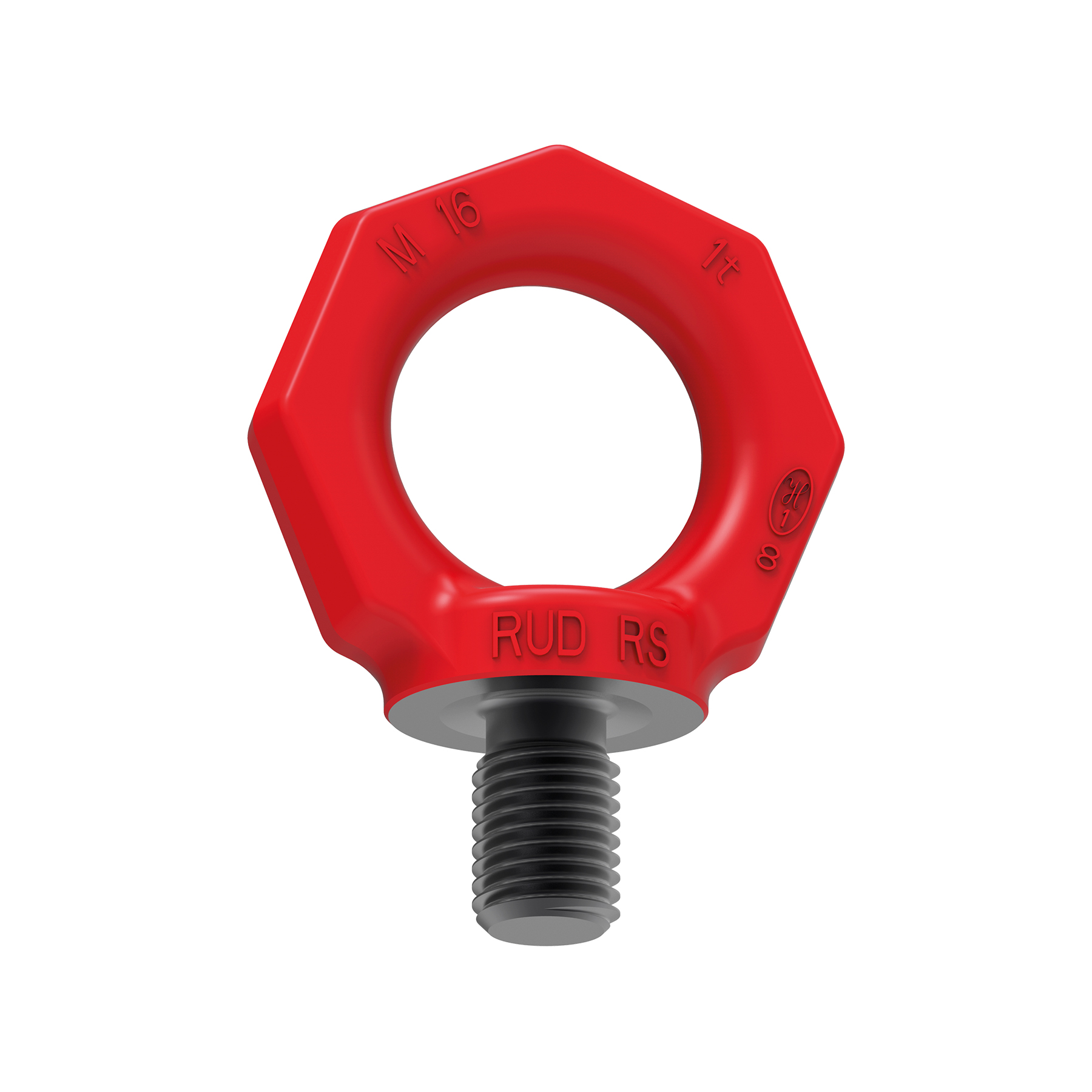

RS Eye bolt, pipe thread ISO 228-1

Higher WLL in comparison to DIN 580
Clear marking of the minimum WLL
Comprehensive range of threads

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Phone
This field is for validation purposes and should be left unchanged.

Product Variants (3)

Eye bolt RS-G1/4" (7986067)

Technical Information

Product number: 7986067

Technical Downloads

Eye bolt RS-G1/4" Download File

Attribute	Value	Value
weight	0.18 kg	0.40 lbs
Nominal WLL	400 kg	880 lbs
A	18 mm	23/32"
B	13 mm	1/2"
T	41 mm	1-5/8"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
M	G 1/4" mm	G 1/4"

Eye bolt RS-G3/8" (7986853)

Technical Information

Product number: 7986853

Technical Downloads

Eye bolt RS-G3/8" Download File

Attribute	Value	Value
weight	0.45 kg	0.99 lbs
Nominal WLL	1000 kg	2200 lbs
A	24 mm	15/16"
B	17 mm	43/64"
T	55 mm	2-5/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	40 mm	1-9/16"
M	G 3/8" mm	G 3/8"

Eye bolt RS-G3/4" (7989219)

Technical Information

Product number: 7989219

Technical Downloads

Eye bolt RS-G3/4" Download File

Attribute	Value	Value
weight	1.60 kg	3.53 lbs
Nominal WLL	2000 kg	4400 lbs
A	40 mm	1-9/16"
B	26 mm	1"
T	85 mm	3-11/32"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	G 3/4" mm	G 3/4"
