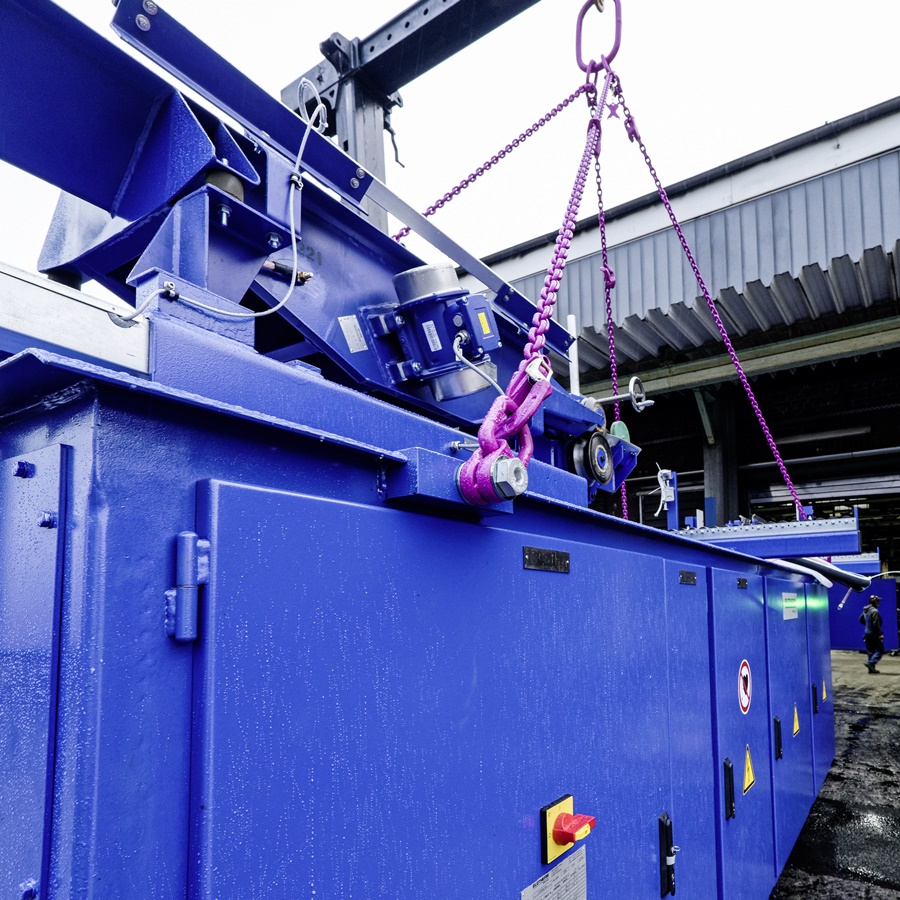

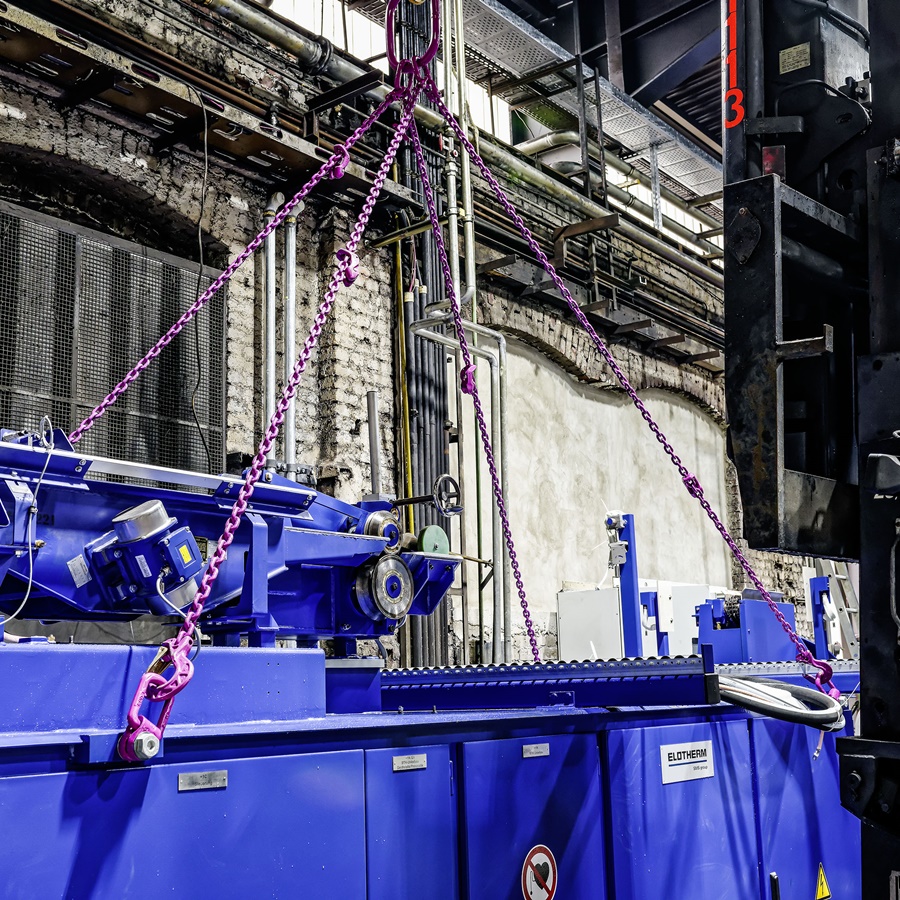

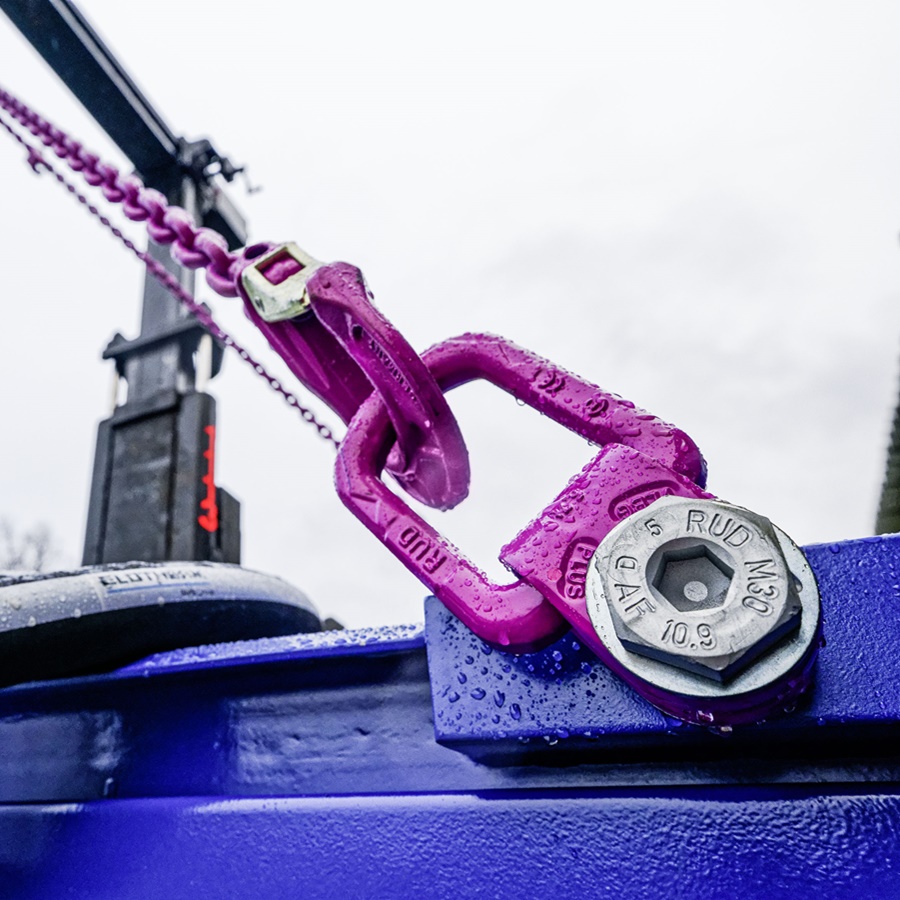

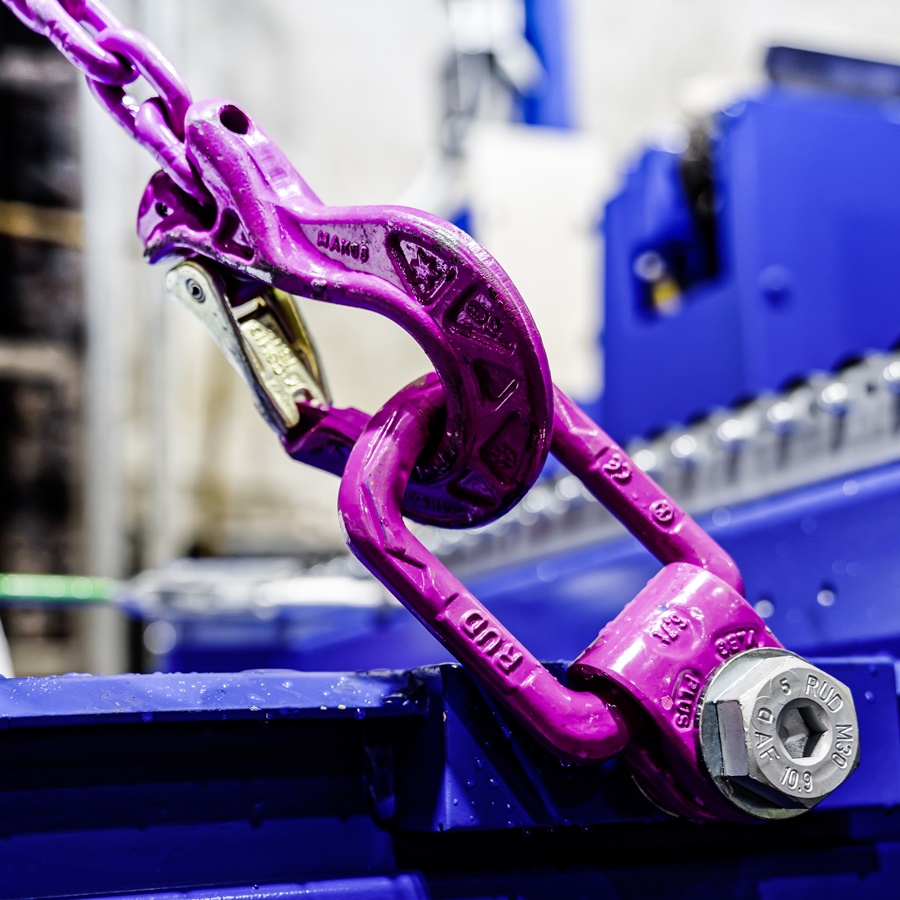

VLBG-PLUS Load Ring - Metric Thread with Variable Length
Tried and tested – Full WLL in all directions
- Comes with DIN Collared Nut
- RUD crack tested ICE/Class 10.9
- Optimum WLL with captive but exchangeable ICE bolt
- ICE bolt made from patented material
- Grade 120 for higher wear resistance
- Comprehensive range of threads
- Can be cut to specific applications
- RUD 4:1 safety factor
Product Variants (11)
Load ring VLBG-PLUS 0.63t M8 with max length H=76 mm (8600470)

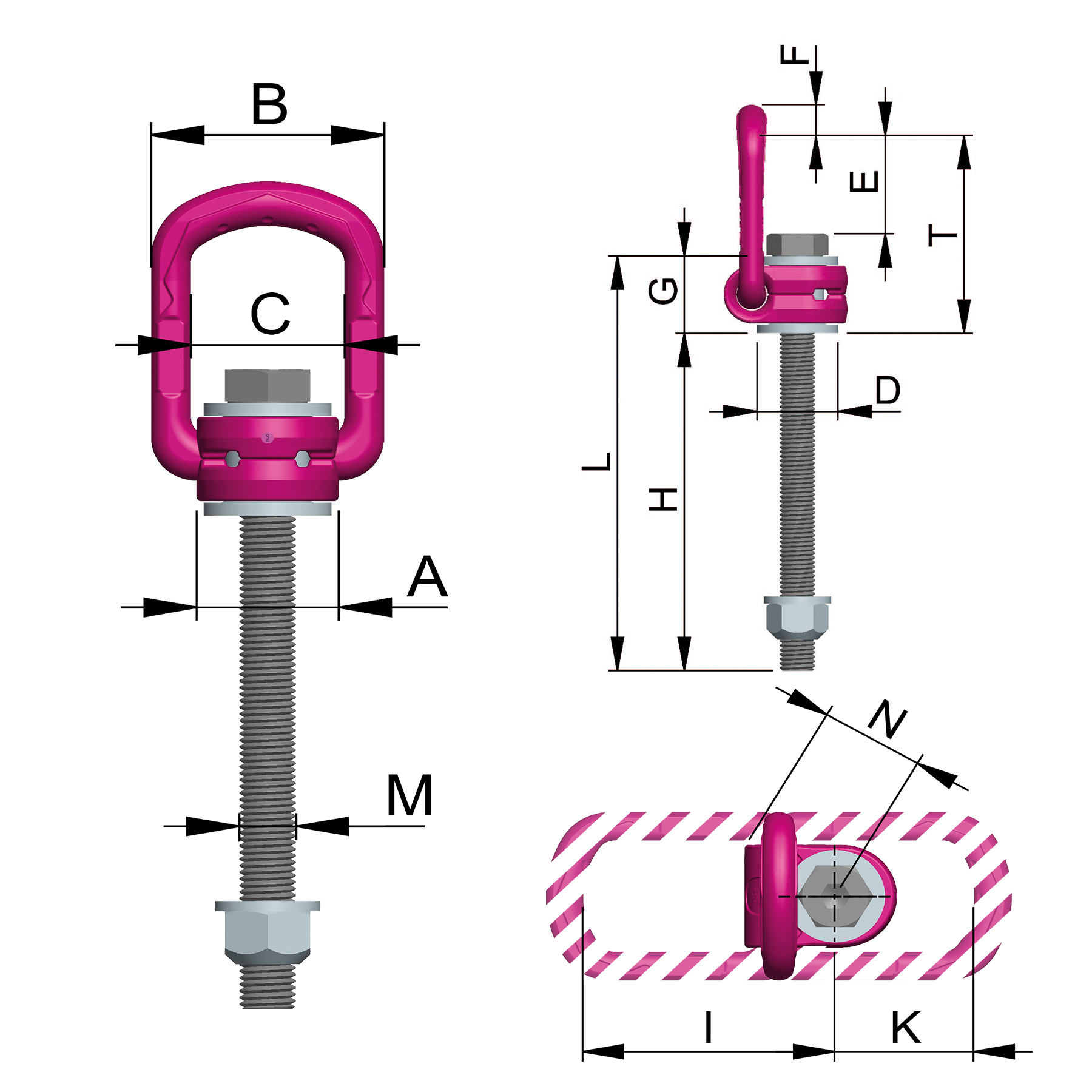

| Attribute | Value | Value |
|---|
| weight | 0.35 kg | 0.77 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| T | 75 mm | 2-15/16" |
| A | 30 mm | 1-3/16" |
| B | 54 mm | 2-1/8" |
| C | 34 mm | 1-11/32" |
| D | 24 mm | 15/16" |
| E | 40 mm | 1-9/16" |
| F | 10 mm | 3/8" |
| G | 29 mm | 1-5/32" |
| H | 76 mm | 3" |
| I | 75 mm | 2-15/16" |
| K | 45 mm | 1-25/32" |
| L | 105 mm | 4-1/8" |
| M | M8 mm | M8 |
| N | 32 mm | 1-1/4" |
Load ring VLBG-PLUS 0.9t M10 with max length H=96 mm (8600471)
| Attribute | Value | Value |
|---|
| weight | 0.40 kg | 0.88 lbs |
| Nominal WLL | 900 kg | 1980 lbs |
| T | 75 mm | 2-15/16" |
| A | 30 mm | 1-3/16" |
| B | 54 mm | 2-1/8" |
| C | 34 mm | 1-11/32" |
| D | 24 mm | 15/16" |
| E | 39 mm | 1-9/16" |
| F | 10 mm | 3/8" |
| G | 29 mm | 1-5/32" |
| H | 96 mm | 3-25/32" |
| I | 75 mm | 2-15/16" |
| K | 45 mm | 1-25/32" |
| L | 125 mm | 4-15/16" |
| M | M10 mm | M10 |
| N | 32 mm | 1-1/4" |
Load ring VLBG-PLUS 1.35t M12 with max length H=116 mm (8600472)
| Attribute | Value | Value |
|---|
| weight | 0.48 kg | 1.06 lbs |
| Nominal WLL | 1350 kg | 2970 lbs |
| T | 75 mm | 2-15/16" |
| A | 32 mm | 1-1/4" |
| B | 54 mm | 2-1/8" |
| C | 34 mm | 1-11/32" |
| D | 26 mm | 1" |
| E | 38 mm | 1-1/2" |
| F | 10 mm | 3/8" |
| G | 29 mm | 1-5/32" |
| H | 116 mm | 4-9/16" |
| I | 75 mm | 2-15/16" |
| K | 45 mm | 1-25/32" |
| L | 145 mm | 5-11/16" |
| M | M12 mm | M12 |
| N | 32 mm | 1-1/4" |
Load ring VLBG-PLUS 2t M16 with max length H=149 mm (8600474)
| Attribute | Value | Value |
|---|
| weight | 0.96 kg | 2.12 lbs |
| Nominal WLL | 2000 kg | 4400 lbs |
| T | 85 mm | 3-11/32" |
| A | 33 mm | 1-5/16" |
| B | 56 mm | 2-3/16" |
| C | 36 mm | 1-27/64" |
| D | 30 mm | 1-3/16" |
| E | 39 mm | 1-9/16" |
| F | 13.5 mm | 17/32" |
| G | 36 mm | 1-27/64" |
| H | 149 mm | 5-7/8" |
| I | 86 mm | 3-3/8" |
| K | 47 mm | 1-7/8" |
| L | 185 mm | 7-9/32" |
| M | M16 mm | M16 |
| N | 38 mm | 1-1/2" |
Load ring VLBG-PLUS 3.5t M20 with max length H=187 mm (8600476)
| Attribute | Value | Value |
|---|
| weight | 1.67 kg | 3.68 lbs |
| Nominal WLL | 3500 kg | 7700 lbs |
| T | 110 mm | 4-11/32" |
| A | 50 mm | 1-31/32" |
| B | 82 mm | 3-1/4" |
| C | 54 mm | 2-1/8" |
| D | 45 mm | 1-25/32" |
| E | 55 mm | 2-5/32" |
| F | 16.5 mm | 21/32" |
| G | 43 mm | 1-11/16" |
| H | 187 mm | 7-9/32" |
| I | 113 mm | 4-7/16" |
| K | 64 mm | 2-1/2" |
| L | 230 mm | 9-1/16" |
| M | M20 mm | M20 |
| N | 48 mm | 1-7/8" |
Load ring VLBG-PLUS 4.5t M24 with max length H=220 mm (8600478)
| Attribute | Value | Value |
|---|
| weight | 2.28 kg | 5.03 lbs |
| Nominal WLL | 4500 kg | 9900 lbs |
| T | 125 mm | 4-15/16" |
| A | 50 mm | 1-31/32" |
| B | 82 mm | 3-1/4" |
| C | 54 mm | 2-1/8" |
| D | 45 mm | 1-25/32" |
| E | 67 mm | 2-5/8" |
| F | 18 mm | 23/32" |
| G | 43 mm | 1-11/16" |
| H | 220 mm | 8-11/16" |
| I | 130 mm | 5-1/8" |
| K | 78 mm | 3-1/16" |
| L | 265 mm | 10-7/16" |
| M | M24 mm | M24 |
| N | 48 mm | 1-7/8" |
Load ring VLBG-PLUS 6.7t M30 with max length H=279 mm (8600480)
| Attribute | Value | Value |
|---|
| weight | 4.58 kg | 10.10 lbs |
| Nominal WLL | 6700 kg | 14740 lbs |
| T | 147 mm | 5-25/32" |
| A | 60 mm | 2-3/8" |
| B | 103 mm | 4-1/16" |
| C | 65 mm | 2-9/16" |
| D | 60 mm | 2-3/8" |
| E | 67 mm | 2-5/8" |
| F | 22.5 mm | 7/8" |
| G | 61 mm | 2-13/32" |
| H | 279 mm | 11" |
| I | 151 mm | 5-15/16" |
| K | 80 mm | 3-1/8" |
| L | 340 mm | 13-3/8" |
| M | M30 mm | M30 |
| N | 67 mm | 2-5/8" |
Load ring VLBG-PLUS 8t M36 with max length H=223 mm (8600289)
| Attribute | Value | Value |
|---|
| weight | 7.20 kg | 15.87 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 197 mm | 7-3/4" |
| A | 77 mm | 3"-1/32" |
| B | 122 mm | 4-13/16" |
| C | 82 mm | 3-1/4" |
| D | 70 mm | 2-3/4" |
| E | 97 mm | 3-13/16" |
| F | 26.5 mm | 1-3/64" |
| G | 77 mm | 3"-1/32" |
| H | 223 mm | 8-25/32" |
| I | 205 mm | 8-1/16" |
| K | 110 mm | 4-11/32" |
| L | 300 mm | 11-13/16" |
| M | M36 mm | M36 |
| N | 87 mm | 3-7/16" |
Load ring VLBG-PLUS 10t M42 with max length H=273 mm (8600290)
| Attribute | Value | Value |
|---|
| weight | 9.28 kg | 20.46 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| T | 197 mm | 7-3/4" |
| A | 77 mm | 3"-1/32" |
| B | 122 mm | 4-13/16" |
| C | 82 mm | 3-1/4" |
| D | 70 mm | 2-3/4" |
| E | 94 mm | 3-11/16" |
| F | 26.5 mm | 1-3/64" |
| G | 77 mm | 3"-1/32" |
| H | 273 mm | 10-3/4" |
| I | 205 mm | 8-1/16" |
| K | 110 mm | 4-11/32" |
| L | 350 mm | 13-3/4" |
| M | M42 mm | M42 |
| N | 70 mm | 2-3/4" |
Load ring VLBG-PLUS 15t M42 with max length H=263 mm (8600291)
| Attribute | Value | Value |
|---|
| weight | 13.78 kg | 30.38 lbs |
| Nominal WLL | 15000 kg | 33000 lbs |
| T | 222 mm | 8-3/4" |
| A | 95 mm | 3-3/4" |
| B | 156 mm | 6-5/32" |
| C | 100 mm | 3-15/16" |
| D | 85 mm | 3-11/32" |
| E | 109 mm | 4-5/16" |
| F | 36 mm | 1-27/64" |
| G | 87 mm | 3-7/16" |
| H | 263 mm | 10-3/8" |
| I | 230 mm | 9-1/16" |
| K | 130 mm | 5-1/8" |
| L | 350 mm | 13-3/4" |
| M | M42 mm | M42 |
| N | 100 mm | 3-15/16" |
Load ring VLBG-PLUS 20t M48 with max length H=303 mm (8600292)
| Attribute | Value | Value |
|---|
| weight | 14.89 kg | 32.83 lbs |
| Nominal WLL | 20000 kg | 44000 lbs |
| T | 222 mm | 8-3/4" |
| A | 95 mm | 3-3/4" |
| B | 156 mm | 6-5/32" |
| C | 100 mm | 3-15/16" |
| D | 95 mm | 3-3/4" |
| E | 105 mm | 4-1/8" |
| F | 36 mm | 1-27/64" |
| G | 87 mm | 3-7/16" |
| H | 303 mm | 11-15/16" |
| I | 230 mm | 9-1/16" |
| K | 130 mm | 5-1/8" |
| L | 390 mm | 15-3/8" |
| M | M48 mm | M48 |
| N | 100 mm | 3-15/16" |
