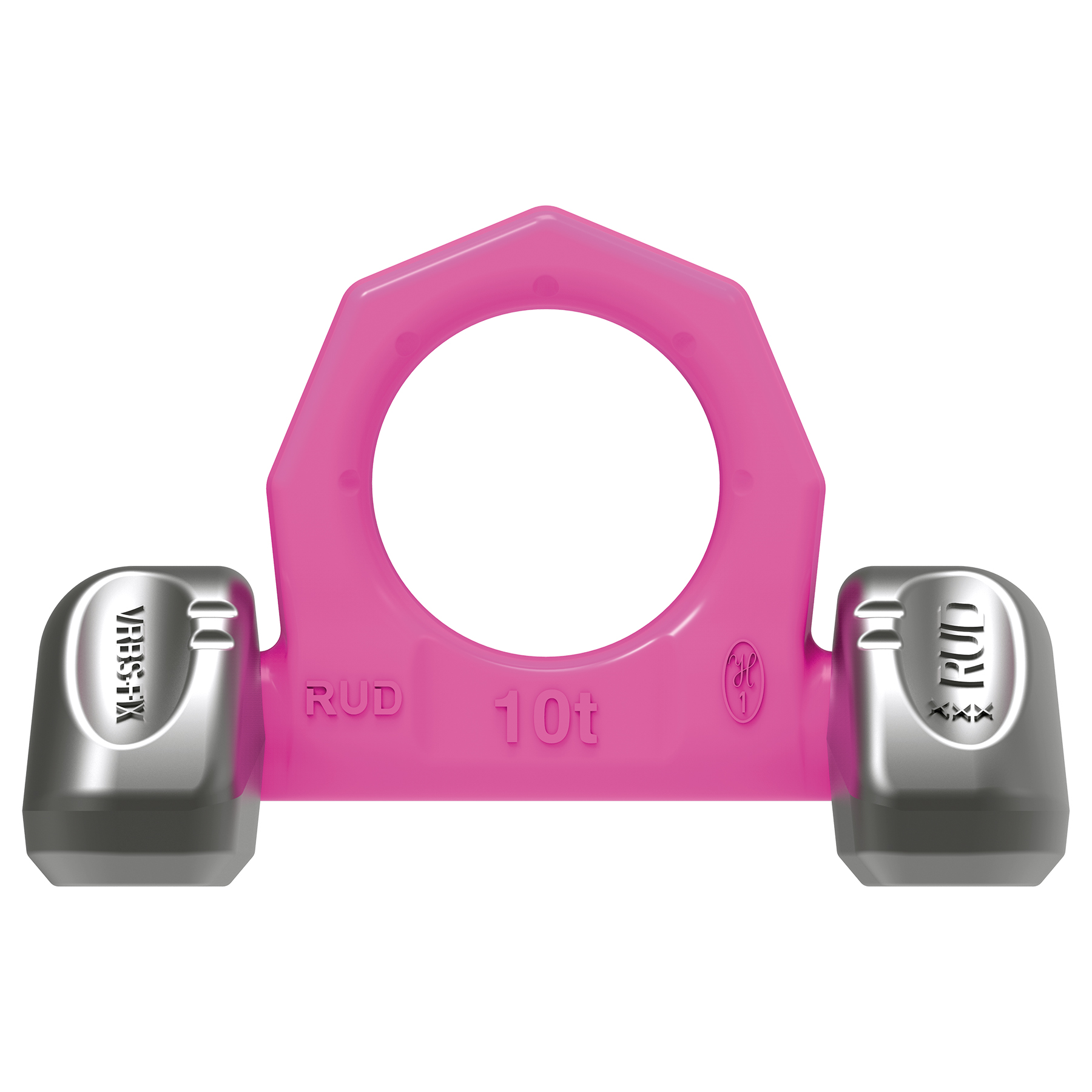

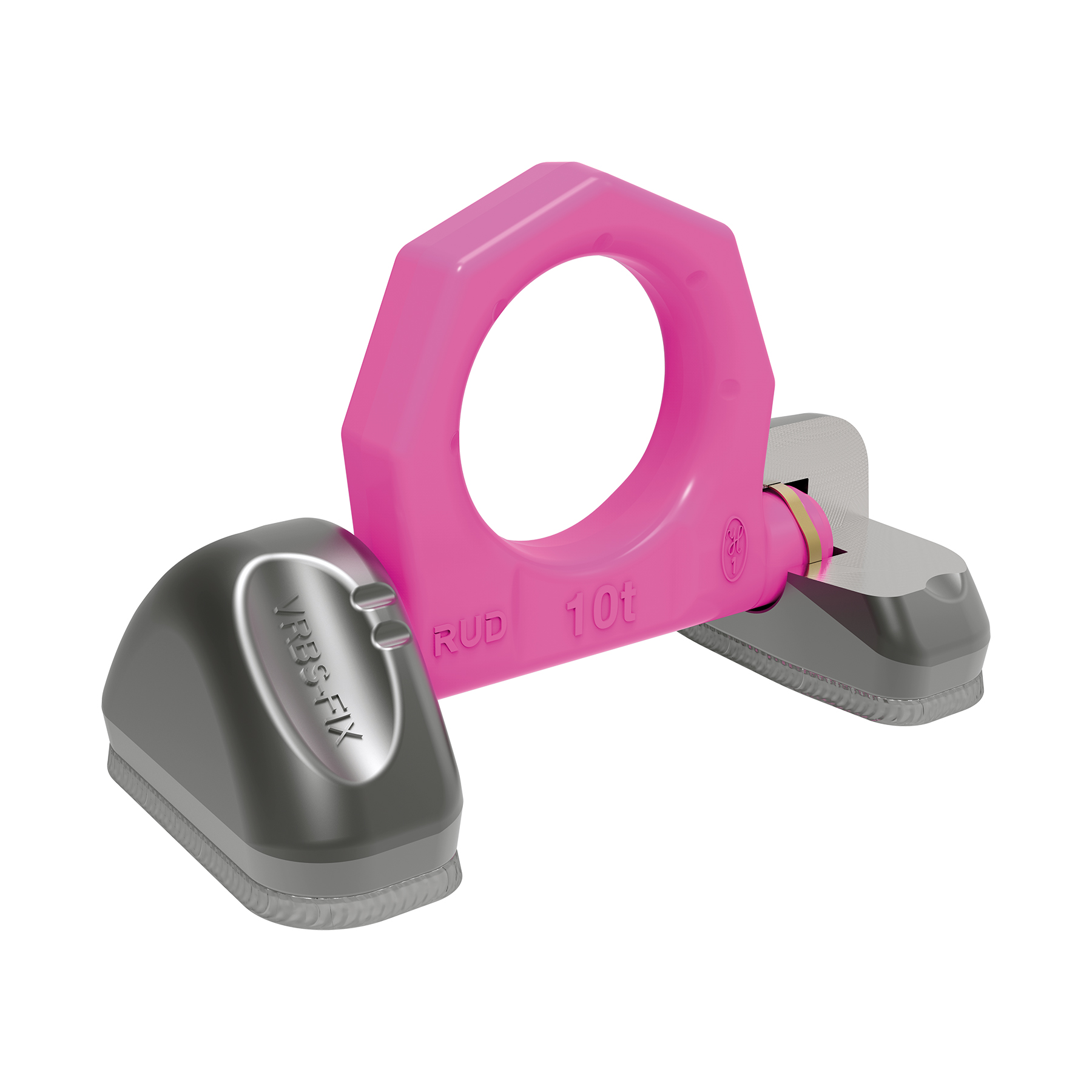

VRBS-FIX Load Ring for Welding - Circumferential Weld Seam
The perfect shared-force welding solution
- No complex levelling of the components to each other
- No crevice corrosion
- Endless HY weld seam

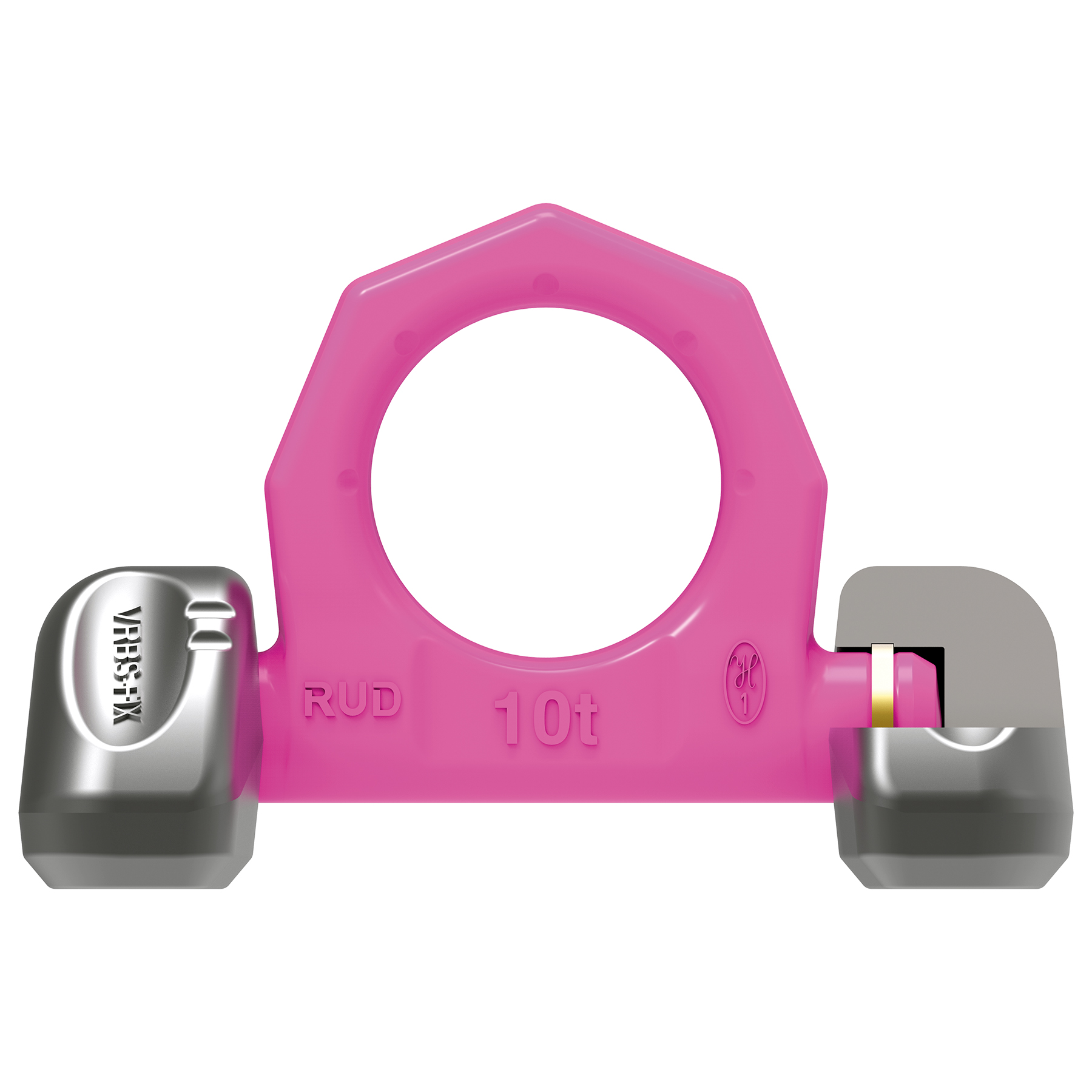

- Clamping spring holds all parts together
- RUD 4:1 safety factor
Product Variants (7)
VRBS-FIX 4t Load Ring for Welding (7999019)

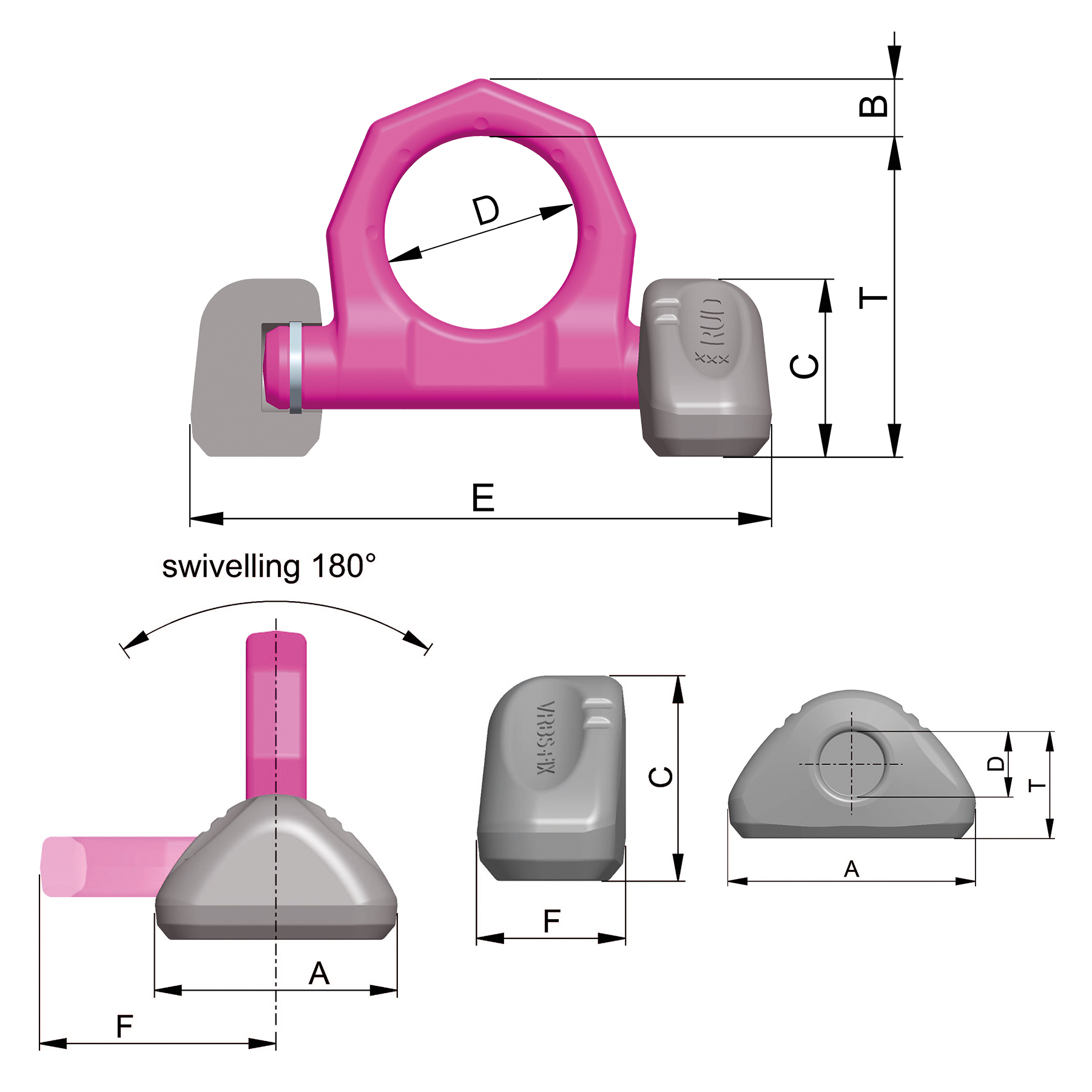

| Attribute | Value | Value |
|---|
| weight | 0.94 kg | 2.07 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 60 mm | 2-3/8" |
| B | 14 mm | 9/16" |
| T | 74 mm | 2-29/32" |
| C | 39 mm | 1-9/16" |
| D | 48 mm | 1-7/8" |
| E | 132 mm | 5-3/16" |
| F | 69 mm | 2-23/32" |
VRBS-FIX 6.7t Load Ring for Welding (7999020)
| Attribute | Value | Value |
|---|
| weight | 2.24 kg | 4.94 lbs |
| Nominal WLL | 6700 kg | 15000 lbs |
| A | 88 mm | 3-15/32" |
| B | 20 mm | 3/4" |
| T | 97 mm | 3-13/16" |
| C | 50 mm | 1-31/32" |
| D | 60 mm | 2-3/8" |
| E | 167 mm | 6-19/32" |
| F | 91 mm | 3-9/16" |
VRBS-FIX 10t Load Ring for Welding (7999021)
| Attribute | Value | Value |
|---|
| weight | 3.72 kg | 8.20 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| T | 108 mm | 4-1/4" |
| A | 100 mm | 3-15/16" |
| B | 22 mm | 7/8" |
| C | 60 mm | 2-3/8" |
| D | 65 mm | 2-9/16" |
| E | 191 mm | 7-1/2" |
| F | 100 mm | 3-15/16" |
VRBS-FIX 16t Load Ring for Welding (7999301)
| Attribute | Value | Value |
|---|
| weight | 8.23 kg | 18.14 lbs |
| Nominal WLL | 16000 kg | 35300 lbs |
| T | 140 mm | 5-1/2" |
| A | 130 mm | 5-1/8" |
| B | 30 mm | 1-3/16" |
| C | 72 mm | 2-27/32" |
| D | 90 mm | 3-17/32" |
| E | 267 mm | 10-1/2" |
| F | 134 mm | 5-9/32" |
VRBS-FIX 31.5t Load Ring for Welding (7999302)
| Attribute | Value | Value |
|---|
| weight | 18.36 kg | 40.48 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| T | 202 mm | 7-15/16" |
| A | 160 mm | 6-13/32" |
| B | 42 mm | 1-21/32" |
| C | 99 mm | 3-7/8" |
| D | 130 mm | 5-1/8" |
| E | 336 mm | 13-7/32" |
| F | 195 mm | 7-11/16" |
VRBS-FIX 50t Load Ring for Welding (7906272)
| Attribute | Value | Value |
|---|
| weight | 64.70 kg | 142.64 lbs |
| Nominal WLL | 50000 kg | 110000 lbs |
| T | 330 mm | 13" |
| A | 246 mm | 9-11/16" |
| B | 70 mm | 2-3/4" |
| C | 148 mm | 5-13/16" |
| D | 230 mm | 9-1/16" |
| E | 596 mm | 23-15/32" |
| F | 335 mm | 13-3/16" |
VRBS-FIX 100t Load Ring for Welding (7906273)
| Attribute | Value | Value |
|---|
| weight | 148.20 kg | 326.73 lbs |
| Nominal WLL | 100000 kg | 220000 lbs |
| T | 390 mm | 15-3/8" |
| A | 320 mm | 12-19/32" |
| B | 97 mm | 3-13/16" |
| C | 195 mm | 7-11/16" |
| D | 250 mm | 9-13/16" |
| E | 763 mm | 30" |
| F | 392 mm | 15-7/16" |
