Washers

Name: Washers
Brand: RUD
SKU: 997

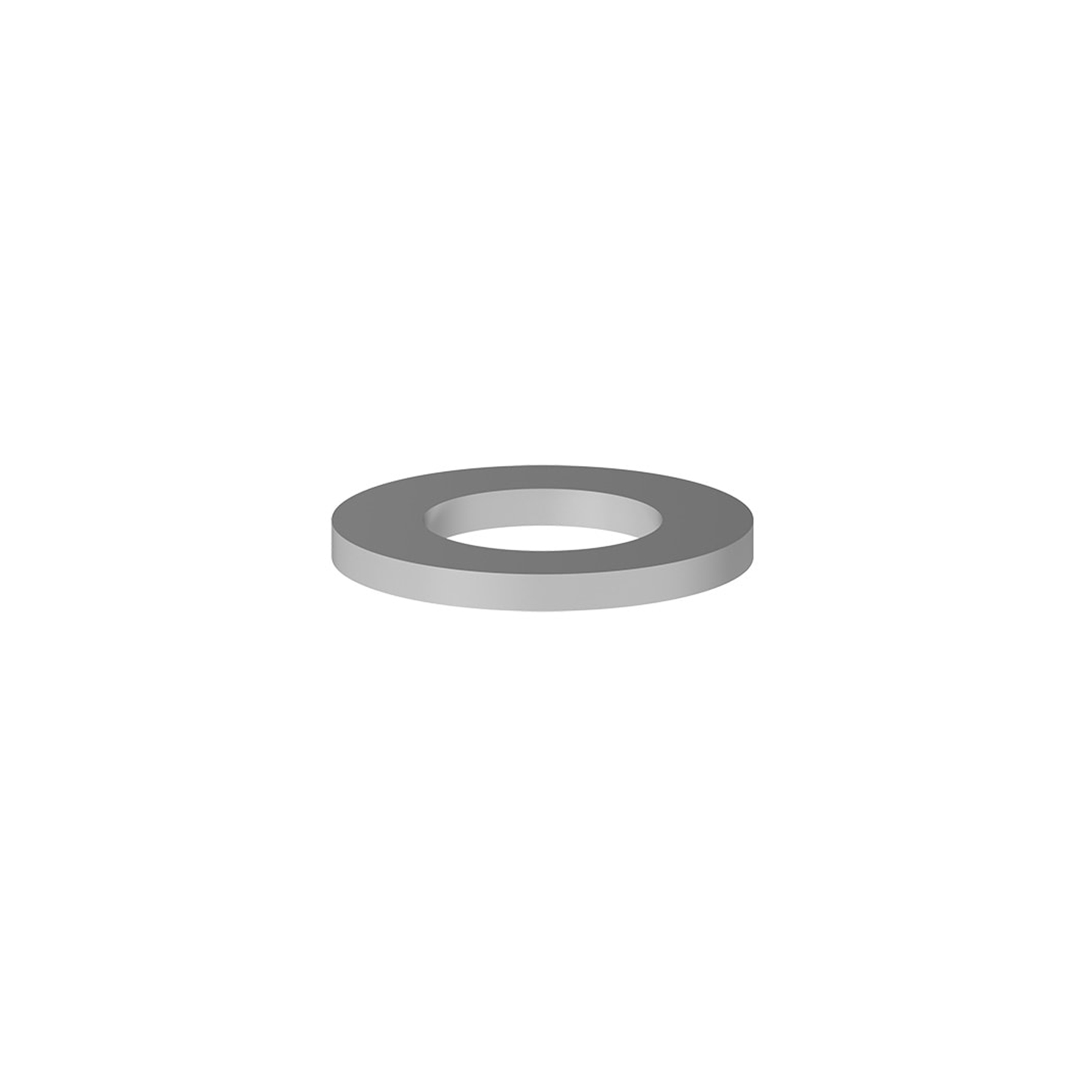

Washer – with a crack detected hexagon nut (extra item) suitable for the assembly of lifting points with long threaded bolts for example in through holes.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (15)

Washer EN 14399-T6 - 58 (for M56) (7906300)

Technical Information

Product number: 7906300

Technical Downloads

Washer EN 14399-T6 - 58 (for M56) Download File

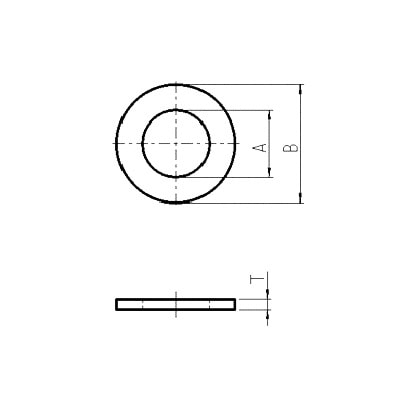

Attribute	Value	Value
weight	0.44 kg	0.97 lbs
A	58 mm	2-9/32"
B	104 mm	4-3/32"
T	10 mm	3/8"

Washer EN 14399-T6 - 50 (for M48) (7991338)

Technical Information

Product number: 7991338

Technical Downloads

Washer EN 14399-T6 - 50 (for M48) Download File

Attribute	Value	Value
weight	0.23 kg	0.66 lbs
A	50 mm	1-31/32"
B	92 mm	3-5/8"
T	8 mm	5/16"

Washer EN 14399-T6 - 43 (for M42) (8801028)

Technical Information

Product number: 8801028

Technical Downloads

Washer EN 14399-T6 - 43 (for M42) Download File

Attribute	Value	Value
weight	0.20 kg	0.4 lbs
A	43 mm	1-45/64"
B	78 mm	3-5/64"
T	7 mm	9/32"

Washer EN 14399-T6 - 37 (for M36) (8801027)

Technical Information

Product number: 8801027

Technical Downloads

Washer EN 14399-T6 - 37 (for M36) Download File

Attribute	Value	Value
weight	0.12 kg	0.25 lbs
A	37 mm	1-29/64"
B	66 mm	2-19/32"
T	6 mm	15/64"

Washer EN 14399-T6 - 31 (for M30) (8801026)

Technical Information

Product number: 8801026

Technical Downloads

Washer EN 14399-T6 - 31 (for M30) Download File

Attribute	Value	Value
weight	0.06 kg	0.14 lbs
A	31 mm	1-7/32"
B	56 mm	2-13/64"
T	5 mm	13/64"

Washer EN 14399-T6 - 28 (for M27) (8801592)

Technical Information

Product number: 8801592

Technical Downloads

Washer EN 14399-T6 - 28 (for M27) Download File

Attribute	Value	Value
weight	0.05 kg	0.11 lbs
A	28 mm	1-1/8"
B	50 mm	1-31/32"
T	5 mm	13/64"

Washer EN 14399-T6 - 25 (for M24) (8801025)

Technical Information

Product number: 8801025

Technical Downloads

Washer EN 14399-T6 - 25 (for M24) Download File

Attribute	Value	Value
weight	0.03 kg	0.07 lbs
A	25.0 mm	63/64"
B	44.0 mm	1-47/64"
T	4.0 mm	5/32"

Washer EN 14399-T6 - 23 (for M22) (8801338)

Technical Information

Product number: 8801338

Technical Downloads

Washer EN 14399-T6 - 23 (for M22) Download File

Attribute	Value	Value
weight	0.02 kg	0.04 lbs
A	23 mm	29/32"
B	39 mm	1-9/16"
T	4.0 mm	5/32"

Washer EN 14399-T6 - 21 (for M20) (8801024)

Technical Information

Product number: 8801024

Technical Downloads

Washer EN 14399-T6 - 21 (for M20) Download File

Attribute	Value	Value
weight	0.02 kg	0.04 lbs
A	21 mm	53/64"
B	37 mm	1-29/64"
T	4 mm	5/32"

Washer DIN 125-A19 (for M18) (0067890)

Technical Information

Product number: 0067890

Technical Downloads

Washer DIN 125-A19 (for M18) Download File

Attribute	Value	Value
weight	0.02 kg	0.03 lbs
A	19 mm	3/4"
B	34 mm	1-11/32"
T	3 mm	1/8"

Washer EN 14399-T6 - 17 (for M16) (8801022)

Technical Information

Product number: 8801022

Technical Downloads

Washer EN 14399-T6 - 17 (for M16) Download File

Attribute	Value	Value
weight	0.02 kg	0.03 lbs
A	17 mm	43/64"
B	30 mm	1-3/16"
T	4 mm	5/32"

Washer DIN 125-A15 (for M14) (0067925)

Technical Information

Product number: 0067925

Technical Downloads

Washer DIN 125-A15 (for M14) Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	15 mm	19/32"
B	28 mm	1-1/8"
T	3 mm	1/8"

Washer DIN 125-A13 (for M12) (7901481)

Technical Information

Product number: 7901481

Technical Downloads

Washer DIN 125-A13 (for M12) Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	13 mm	1/2"
B	24 mm	15/16"
T	3 mm	1/8"

Washer DIN 125-A10.5 (for M10) (7901480)

Technical Information

Product number: 7901480

Technical Downloads

Washer DIN 125-A10.5 (for M10) Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	10 mm	5
B	21 mm	13/16"
T	2 mm	13/64"

Washer DIN 125-A8.4 (for M8) (7103075)

Technical Information

Product number: 7103075

Technical Downloads

Washer DIN 125-A8.4 (for M8) Download File

Attribute	Value	Value
weight	0.01 kg	0.02 lbs
A	8.4 mm	21/64"
B	17 mm	43/64"
T	2 mm	13/64"
