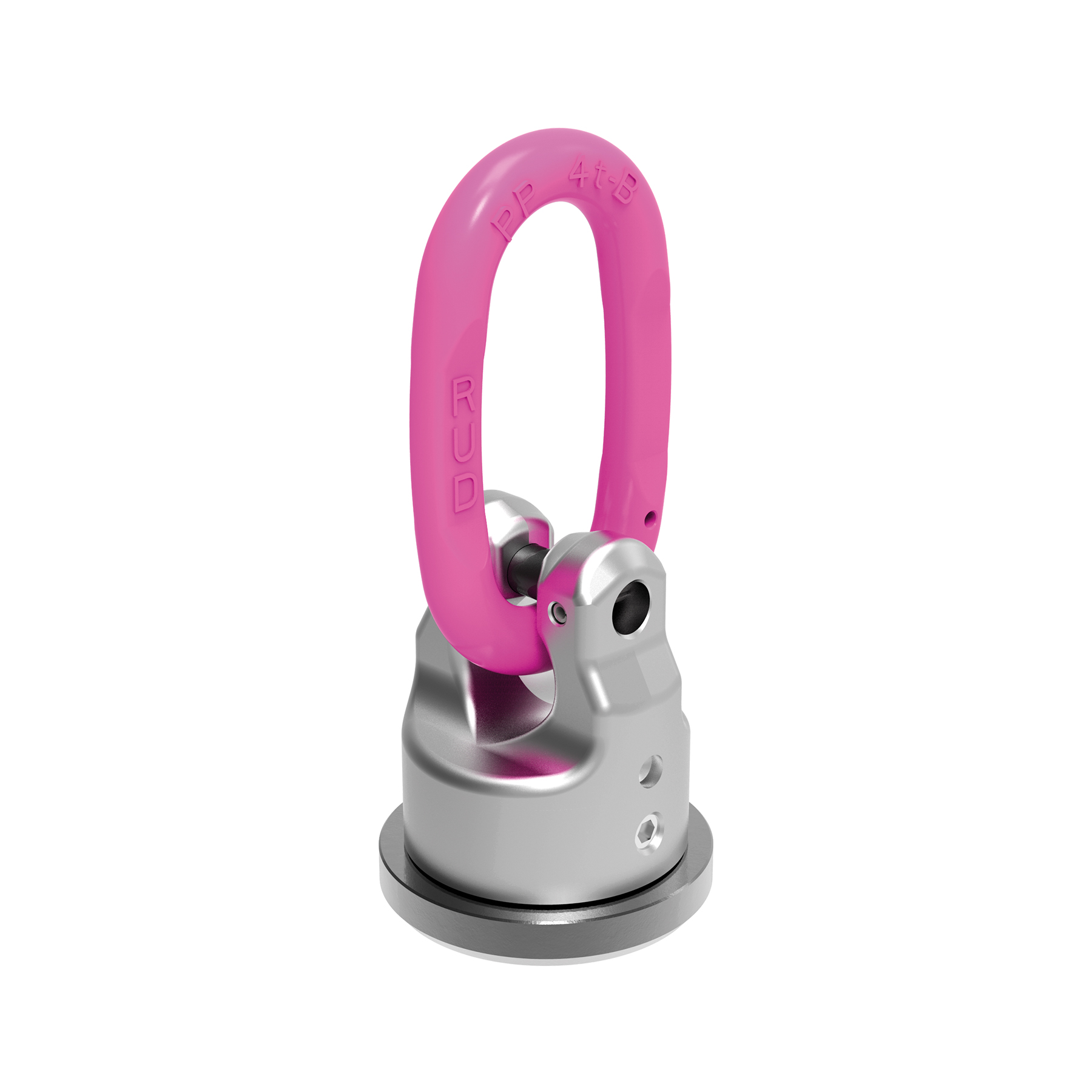

WPP-B PowerPoint® - Ring Connection
Universal connection with many attachment options

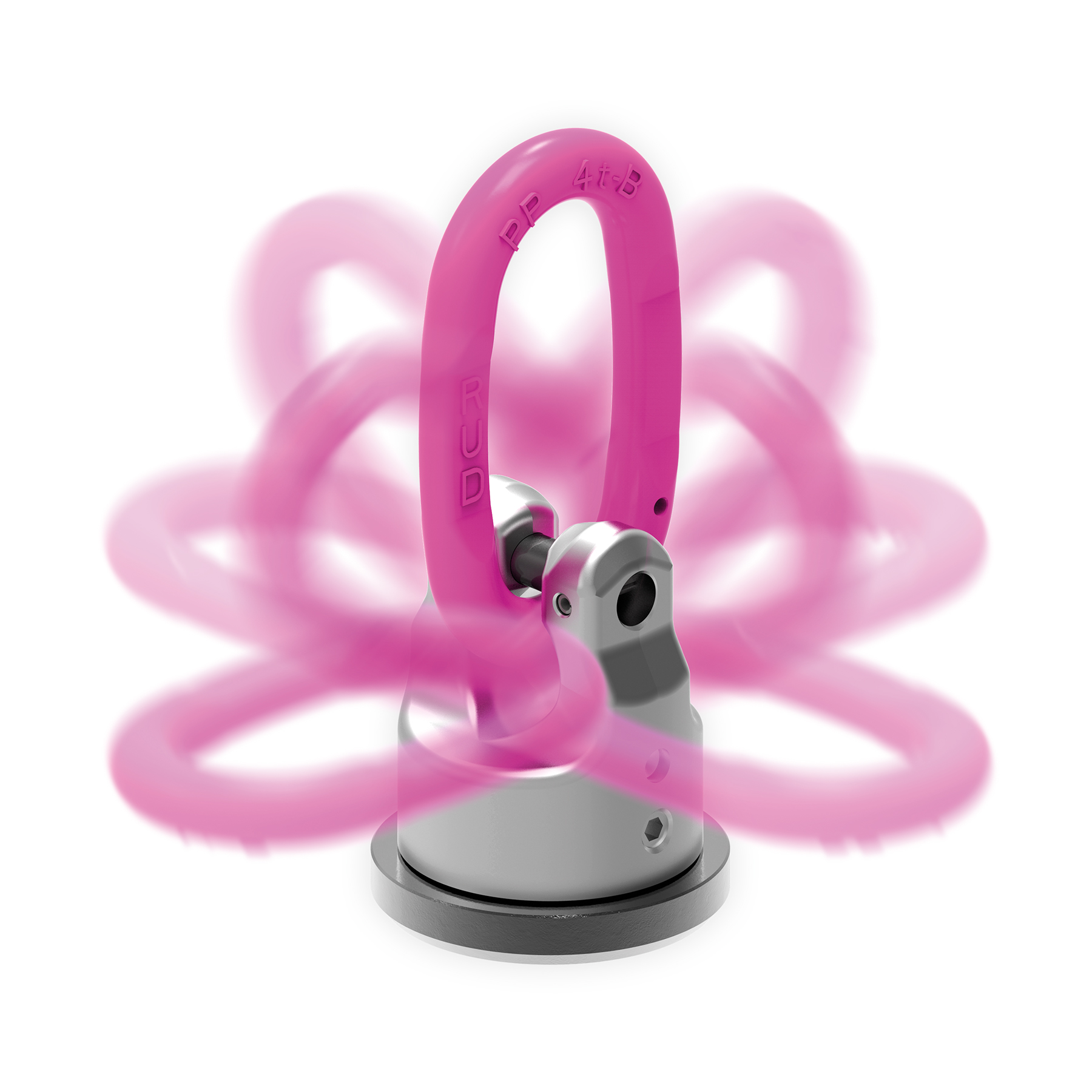

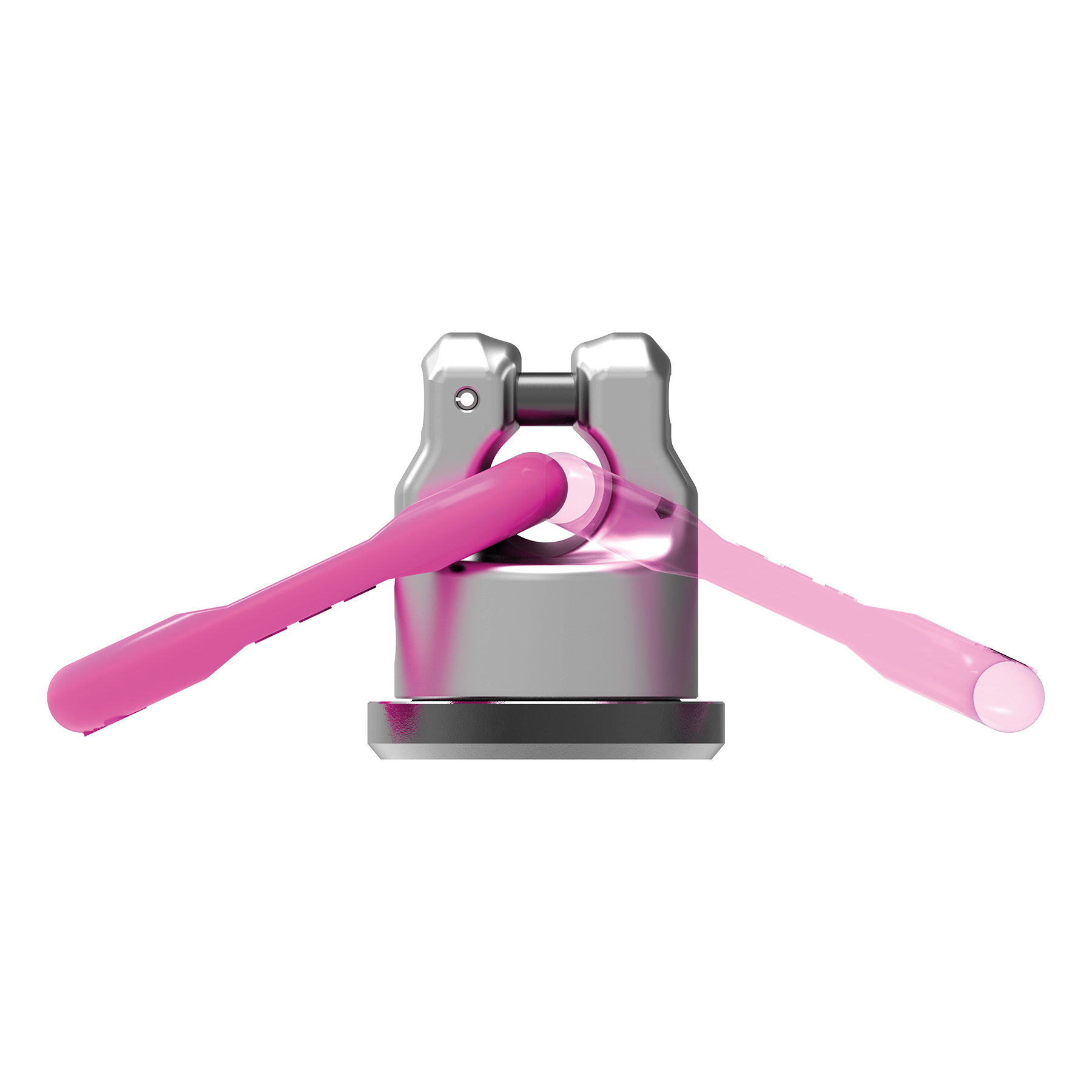

- Rotates 360° and pivots 230°

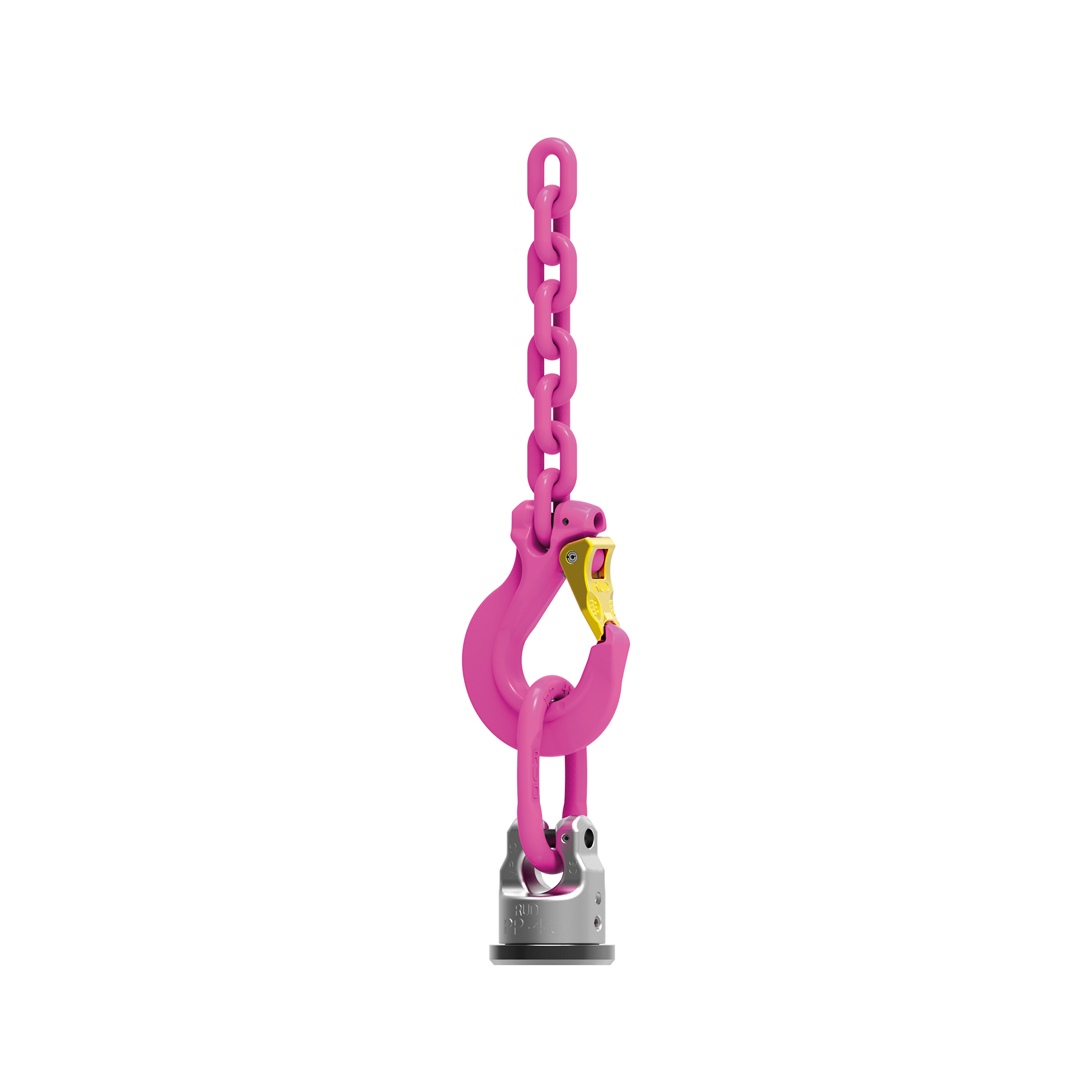

- Universal VIP connection for chain, hook and eye
- Double ball bearing for rotating and turning actions
- RUD 4:1 safety factor
Product Variants (7)
PowerPoint WPP-B-0.63t (7989954)

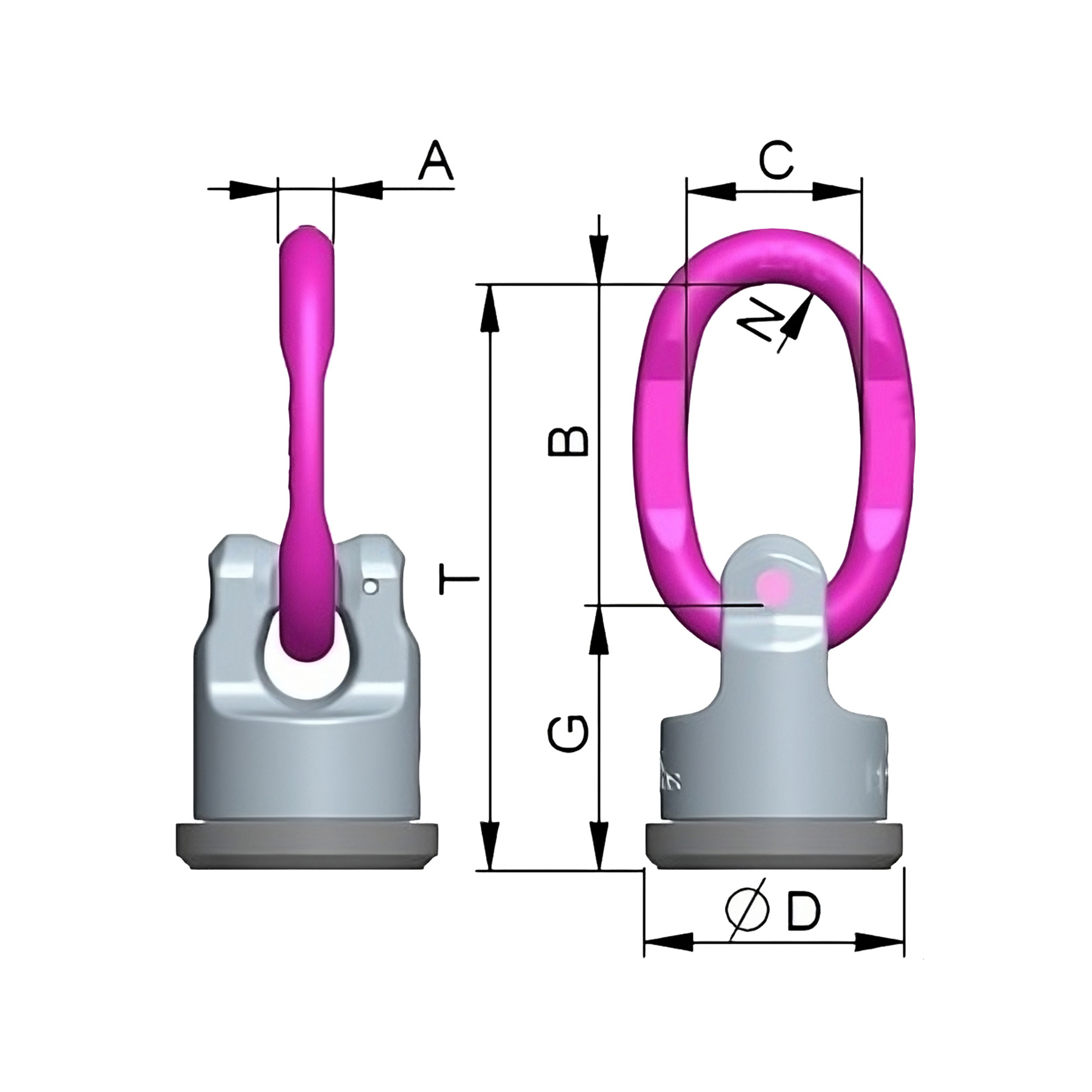

Attribute | Value | Value |
---|
weight | 0.35 kg | 0.77 lbs |
Nominal WLL | 630 kg | 1385 lbs |
T | 105 mm | 4-1/8" |
A | 9 mm | 11/32" |
B | 65 mm | 2-9/16" |
C | 35 mm | 1-3/8" |
D | 40 mm | 1-9/16" |
G | 40 mm | 1-9/16" |
N | 15 mm | 19/32" |
PowerPoint WPP-B-1.5t (7989955)
Attribute | Value | Value |
---|
weight | 0.40 kg | 0.88 lbs |
Nominal WLL | 1500 kg | 3300 lbs |
A | 11 mm | 7/16" |
B | 65 mm | 2-9/16" |
T | 115 mm | 4-1/2" |
C | 35 mm | 1-3/8" |
D | 46 mm | 1-13/16" |
G | 50 mm | 1-31/32" |
N | 15 mm | 19/32" |
PowerPoint WPP-B-2.5t (7989956)
Attribute | Value | Value |
---|
weight | 1.00 kg | 2.20 lbs |
Nominal WLL | 2500 kg | 5500 lbs |
A | 13 mm | 1/2" |
B | 74 mm | 2-29/32" |
T | 135 mm | 5-5/16" |
C | 40 mm | 1-9/16" |
D | 61 mm | 2-13/32" |
G | 61 mm | 2-13/32" |
N | 18 mm | 23/32" |
PowerPoint WPP-B-4t (7989957)
Attribute | Value | Value |
---|
weight | 2.30 kg | 5.07 lbs |
Nominal WLL | 4000 kg | 8800 lbs |
A | 16 mm | 5/8" |
B | 95 mm | 3-3/4" |
T | 172 mm | 6-25/32" |
C | 45 mm | 1-25/32" |
D | 78 mm | 3-1/16" |
G | 77 mm | 3"-1/32" |
N | 20 mm | 3/4" |
PowerPoint WPP-B-5t (7989958)
Attribute | Value | Value |
---|
weight | 4.70 kg | 10.36 lbs |
Nominal WLL | 5000 kg | 11000 lbs |
T | 223 mm | 8-25/32" |
A | 19 mm | 3/4" |
B | 130 mm | 5-1/8" |
C | 60 mm | 2-3/8" |
D | 95 mm | 3-3/4" |
G | 93 mm | 3-21/32" |
N | 25 mm | 63/64" |
PowerPoint WPP-B-8t (7989959)
Attribute | Value | Value |
---|
weight | 5.30 kg | 11.68 lbs |
Nominal WLL | 8000 kg | 17600 lbs |
T | 242 mm | 9-7/32" |
A | 24 mm | 15/16" |
B | 140 mm | 5-1/2" |
C | 65 mm | 2-9/16" |
D | 100 mm | 3-15/16" |
G | 102 mm | 4" |
N | 28 mm | 1-1/8" |

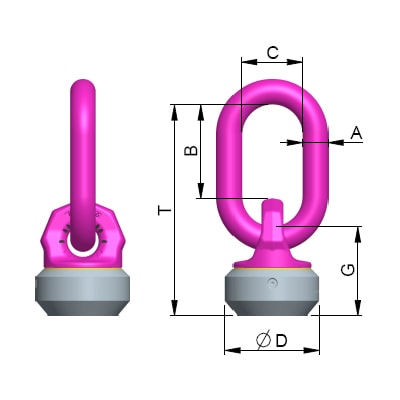

VWBS 40(50)t (7903650)
Attribute | Value | Value |
---|
weight | 27.90 kg | 61.51 lbs |
Nominal WLL | 40000 kg | 88000 lbs |
T | 380 mm | 15" |
A | 46 mm | 1-13/16" |
B | 170 mm | 6-11/16" |
C | 110 mm | 4-11/32" |
D | 170 mm | 6-11/16" |
G | 161 mm | 6-11/32" |
N | 55 mm | 2-5/32" |
